New RYOBI 18V Hand Planer (PCL428): Specs & First Look
RYOBI 18V ONE+ 3-1/4 in. Hand Planer (PCL428): Features, Specs, and First Look
The new RYOBI 18V ONE+ 3-1/4 in. Hand Planer (model PCL428) just landed, and it fills a real gap in the ONE+ cordless lineup. If you work with rough lumber, hang doors, or build with reclaimed wood, this is a tool worth a closer look.
Below is the full breakdown of the RYOBI PCL428 hand planer: specs, features, what comes in the box, pricing, and where it fits in the 18V ONE+ system. If you want to grab one, you can check current pricing and availability here.
Disclosure: some links in this post are affiliate links. If you buy through them, I may earn a small commission at no extra cost to you.
Quick Facts
- Model: PCL428B (tool only) and PCL428K1 (kit, coming soon)
- MSRP: $139 tool only, $189 kit
- Cutting width: 3-1/4 in.
- Max cut depth: 5/64 in. per pass
- No-load speed: Up to 14,000 RPM
- Weight: 5.6 lb (bare tool)
- Warranty: 3-year manufacturer warranty
- Battery system: 18V ONE+ (300+ compatible tools)
Why a Cordless Planer Matters
Hand planers get pulled out at awkward moments. A door that drags. A board that needs to come down a hair. A stack of reclaimed lumber that has to be cleaned up before it can go through a jointer. Dragging a cord to those jobs has always been the worst part.
Putting the planer on the ONE+ battery platform makes sense, especially for the weekend builder, the trim carpenter, or anyone who already owns RYOBI batteries. No cord to manage and no extension reel to drag around.

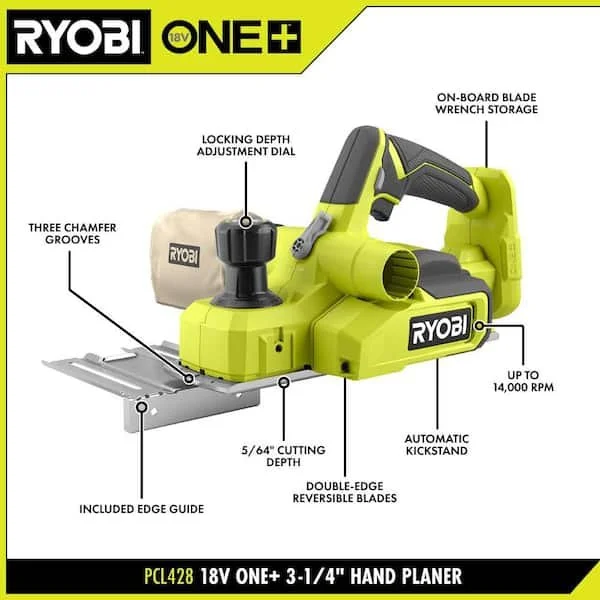

Key Features of the RYOBI PCL428 Hand Planer
Up to 5/64 in. Cutting Depth
A 5/64 in. cut depth puts this planer in the same conversation as most corded compact planers on the market. Fewer passes to get a board where you need it, and less time spent fighting a rough surface.
14,000 RPM and Double Edge Reversible Blades
The motor spins up to 14,000 RPM, and the blades are double edge and reversible. When one side dulls, flip the blade and keep going. That keeps consumable costs in check over the life of the tool.
Locking Depth Adjustment Dial
The depth dial locks at your chosen setting. A small detail that matters when you are working across a long board or a stack of pieces that all need to match.
Edge Guide and Chamfer Grooves
The included edge guide opens up step cuts and shiplap-style joints, which is useful for accent walls, paneling, or rustic builds. Three chamfer grooves on the front shoe give you multiple chamfer depths without setting up a router.
Automatic Kickstand
The automatic kickstand drops down when you set the tool on the workpiece. It keeps the spinning blades off the wood between passes and helps prevent marring.
Dust Collection
The PCL428 ships with a dust bag and also accepts standard 1-1/4 in. and 1-7/8 in. vacuum hoses. For shop use, hooking it to a vac is the right call. For job site or quick trim work, the bag does the job.
On-Board Blade Wrench Storage
The blade wrench stores on the tool, which sounds minor until you need it and cannot find it. Anyone who has flipped a planer blade in the field will appreciate this one.

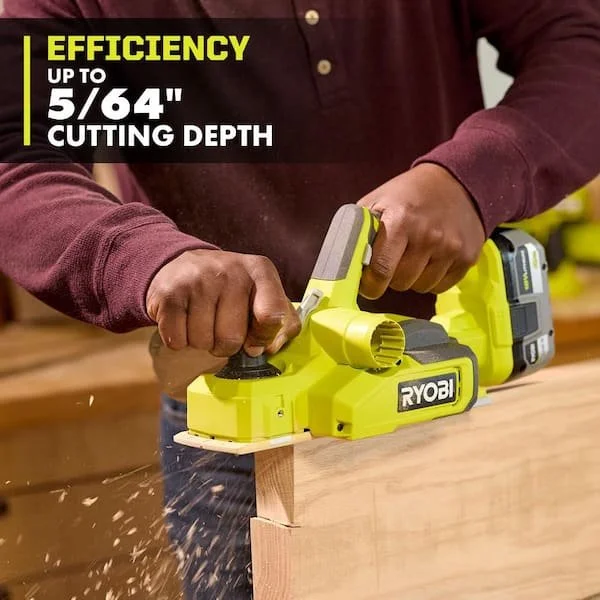

A Look at the Tool in Use
Full Specifications
| Blade Width | 3.25 in. |
| Max Cut Depth | 5/64 in. (0.078125 in.) |
| Max Speed | 14,000 RPM |
| Motor Type | Brushed |
| Battery Platform | 18V ONE+ Lithium Ion |
| Weight | 5.6 lb |
| Dimensions (L x W x H) | 13.125 x 7.25 x 7.625 in. |
| Dust Collection | Dust bag, 1-1/4 in. and 1-7/8 in. vacuum hose compatible |
| Warranty | 3-Year Manufacturer Warranty |
| Returnable | 90-Day |

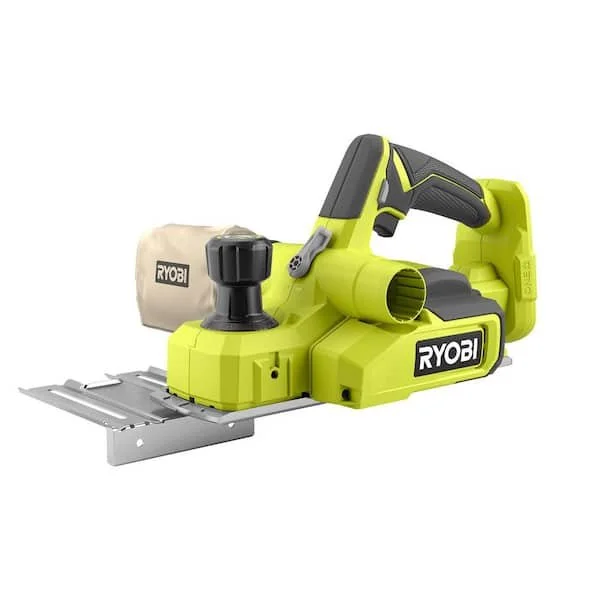

What Comes in the Box
PCL428B (Tool Only) $139
- 18V ONE+ 3-1/4 in. Hand Planer
- Edge guide
- Blade wrench
- Dust bag
- Operator's manual
PCL428K1 (Kit) $189, Coming Soon
- 18V ONE+ 3-1/4 in. Hand Planer
- 18V 4Ah Lithium Battery
- Charger
- Edge guide
- Blade wrench
- Dust bag
- Operator's manual
Who This Planer Is For
If you already live inside the RYOBI 18V ONE+ system, this one is a no brainer at $139. You get a real cordless planer that drops onto every battery you already own. For DIYers, weekend woodworkers, trim carpenters, and remodelers, that is a strong value play.
Folks just getting started in the ONE+ platform should look at the PCL428K1 kit when it lands. The 4Ah battery and charger at $189 puts you into a real system for the cost of one battery upgrade down the road.
Frequently Asked Questions
Does the RYOBI PCL428 come with a battery?
The PCL428B is sold as a bare tool with no battery or charger. The PCL428K1 kit includes a 4Ah ONE+ battery and charger.
How deep does the RYOBI 18V planer cut?
Maximum cut depth is 5/64 in. (0.078 in.) per pass.
How wide is the cutting path?
The blade width is 3-1/4 in., which is the standard width for compact hand planers.
Are the blades replaceable?
Yes. The PCL428 uses double edge reversible blades, so you can flip them when one side dulls and replace them when both sides are spent.
Can I hook this planer to a shop vac?
Yes. The dust port accepts standard 1-1/4 in. and 1-7/8 in. vacuum hoses, and a dust bag is included if you do not want to hook up a vac.
What is the warranty?
RYOBI backs the PCL428 with a 3-year manufacturer warranty.
Final Word
The 18V ONE+ 3-1/4 in. Hand Planer fills a real gap in the RYOBI cordless lineup. Spec for spec, it competes with corded compact planers people have been using for years, and it does it on a battery system most DIYers already own. At $139 for the bare tool, it is priced where it belongs.
Want to grab one? Check current pricing and availability on the PCL428 here.
